BRAND: ProJect Audio
SERIES: ELEMENTAL PHONO USB
TYPE: Turntable

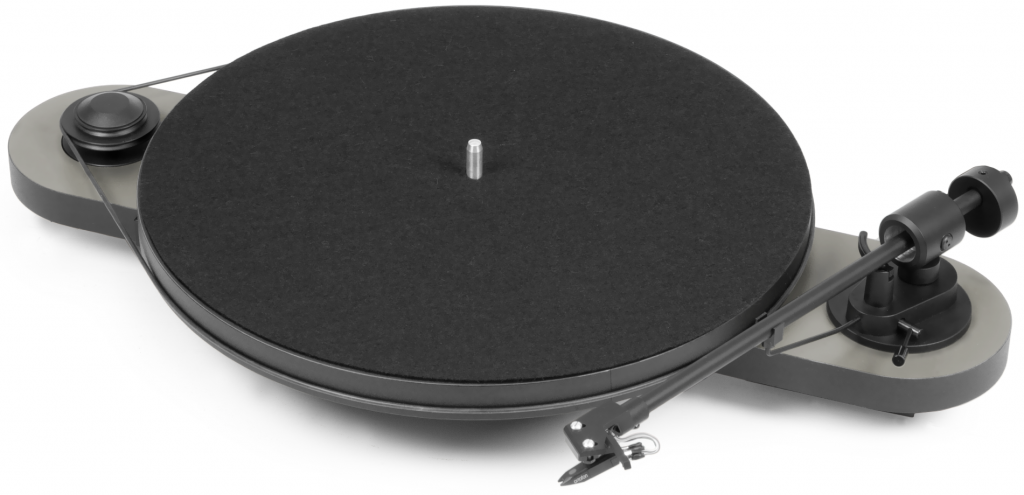

Pro-Ject has decided to go after the cheap plastic turntable market with an high quality alternative that comes complete with an Ortofon cartridge. The new Elemental Phono USB table is a real „plug‘n‘play“ all the way. No adjustment of counterweight and antiskating is needed, because both are pre-adjusted. This new straight tonearm is optimised for Ortofon OM cartridge
OVERVIEW
- Belt drive system with low vibration DC motor
- Central gravity mass point made from artificial stone
- Main platter bearing made from stainless steel runs in bronze bushing with Teflon bottom.
- Low resonance particle board platter with felt mat
- 8,6” ultra low mass tonearm with straight arm tube
- Pre-adjusted tracking force & antiskating
- Gold-plated RCA contacts & cartridge pins
- Integrated phono stage with precise RIAA equalisation
- Line level output
- A/D converter for vinyl recording with USB B output
- Colour options: red-black, white-black, silver-black
Share
TECHNICAL SPECIFICATIONS
speed
33, 45 (manual speed change)
speed variance
33: 0,80% 45: 0,70%
wow & flutter
33: 0,29% 45: 0,27%
platter
300mm particle board
tonearm
8,6” metal tube
effective arm length
218,5 mm
overhang
22,0 mm
effective tonearmmass
8,0gr
counterweight for cartridge mass
3 – 5,5g (included)
tracking force range
0 – 30mn (OM5 18mn pre-adjusted)
A/D conversion
16bit Delta Sigma
output
RCA & USB-B
included accessory
RCA cable, USB B cable, 15V DC power supply
power consumption
5,0 watts
dimensions
415 x 90 x 300mm (WxHxD)
weight
2,7 kg
