BRAND: ProJect Audio

SERIES: Juke Box E
TYPE: Turntable, Lifestyle

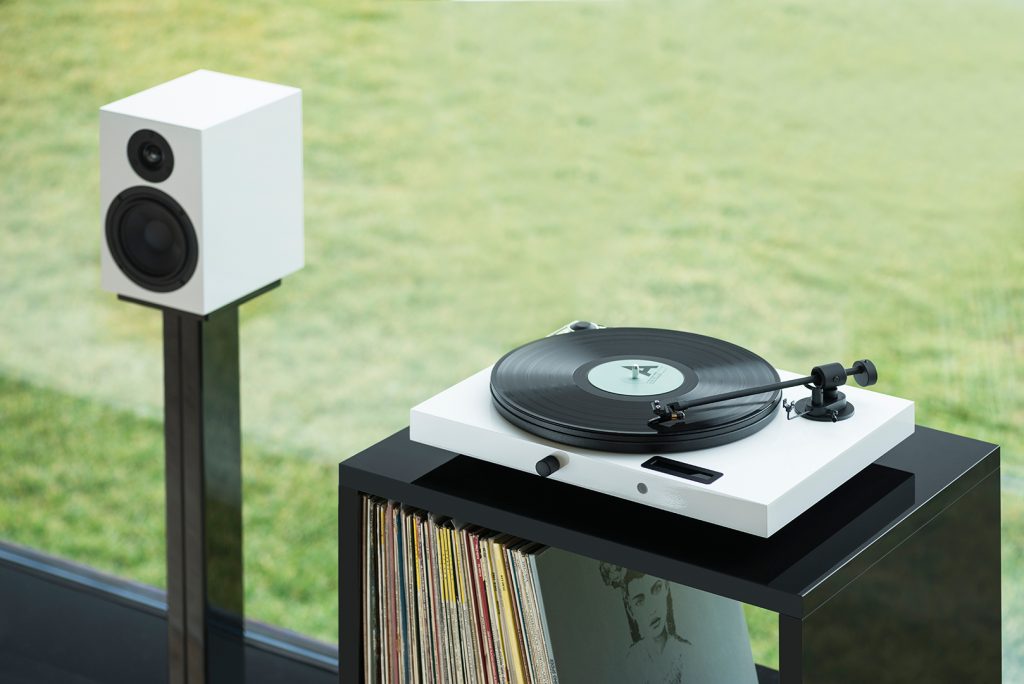

Juke Box E is record player, phono stage, Bluetooth receiver, line pre-amplifier and power amplifier in one, requiring only a pair of speakers to make a complete system. If you thought that a starter turntable system is complicated to set up, Juke Box E proves the contrary. This good sounding belt-drive deck offers the fastest possible installation process because it comes pre-adjusted out of the box and offers superb sound quality.



OVERVIEW

Tracking force and anti-skating of the turntable section are carefully pre-set. An acrylic dust cover is included. The “All-in-one turntable system” is available in high-gloss black, red or white colour.

  • Instant playback with super-easy setup
  • High contrast display on top
  • Bluetooth and 1 line input
  • Line record output
  • Gold plated sockets
  • Pre-adjusted tracking force & anti-skating force
  • Ortofon OM5e cartridge, pre-mounted
  • 8.6” aluminium tonearm with sapphire bearings
  • Belt drive with silicone belt
  • Low vibration synchronous motor & DC power supply
  • Special feet for effective decoupling
  • IR remote control included
  • Colour options: HG Black, HG White, HG Red

Share on facebook

Share

TECHNICAL SPECIFICATIONS

Power output
2 x 50 Wats (4 Ohm)

Outputs
Speakers, Line out (fixed), Phono out

Inputs
Bluetooth, 1x Line (analogue)

Speed
33, 45 (manual speed change)

Principle
Belt drive

Speed variance
33: 0.8% 45: 0.7%

Wow & flutter
33: 0.29% 45: 0.27%

Platter
300 mm plywood with felt mat

Main bearing
Stainless steel in bronze bushing





Tonearm
8.6” aluminium

Effective arm length
218.5 mm

Overhang
22.0 mm

Effective tonearm mass
8.0 g

Counterweight for mass
3 – 5.5g (pre-mounted)

Tracking force range
0 – 25mN (OM5e 18mN pre-adjusted)

Included accessory
Power supply, dust cover, remote control

Power consumption
110W max

Dimensions
415 x 118 x 334mm (WxHxD)

Weight
5 kg net
