BRAND: ProJect Audio

SERIES: PS01-Wave
TYPE: Turntable

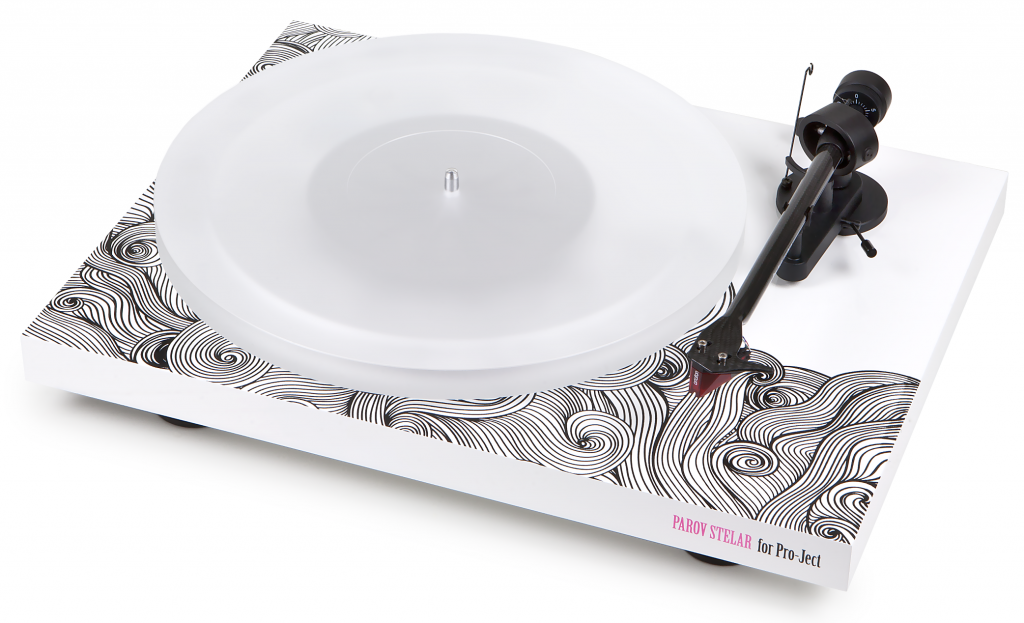

PS01-Wave is joint project of Pro-Ject Audio Systems and Parov Stelar, that sets an audio landmark! Based on the worldwide highly acclaimed DEBUT CARBON ESPRIT (DC), which set a new standard for analogue turntables for the next decade. PS01-Wave is a real eye-catcherand meets the growing demand of all fans of high-class,but affordable vinyl record players and attracts real Parov Stelar fans!





OVERVIEW

A first class tonearm made from carbon fibre ensures superior stiffness and significantly reduced resonances than metal tonearms.

This material normally is extensively used in high-end tonearms, but – because of cost reasons – was never used in products at lower price levels. Together with an acrylic platter the carbon tonearm offers outstanding sound quality levels! The approved belt drive design offers low noise AC motor with effective TPE (Thermo Plastic Elastomere) motor decoupling, and ultra precision frequency DC-driven AC generator (like Speed Box) for ultimate speed stability without unwanted vibration. Due to this effort 20% higher listening levels without the risk of distortion can be achieved.

PS01-Wave is available as a strictly limited edition of only 1000 pieces worldwide!

  • “Must have” for fans of Parov Stelar and vinyl
  • Exclusive design with 7 printing layers
  • 8,6” carbon fibre tonearm
  • Non-resonant acrylic platter
  • Ultra silent belt drive system with ultra precision frequency
  • DC-driven AC generator and synchronous motor
  •  TPE motor suspension
  • Hightech damping feet made from TPE for up to 20% higher listening levels without distortion
  •  Ortofon cartridge 2M red
Share on facebook

Share

TECHNICAL SPECIFICATIONS

Speed
33, 45 (manual speed change)

Drive principle
belt drive

Wow and flutter
+/- 0,10%

Speed drift
+/- 0,80%

Platter
300mm acrylic platter

Main platter bearing spindle
stainless steel

Signal to noise
– 68dB

Tonearm
8,6” Carbon

Effective arm length
218,5 mm

Overhang
18,5mm

Effective tonearm mass
6,0 g

Tracking force
10 – 30mN

Included accessory
15 volts DC / 0,8A power supply,dust cover

Standby power cunsumption
1 < watt

Dimensions
415 x 118 x 320mm (WxHxD) lid closed

Weight
5,6 kg net
