BRAND: ProJect Audio

SERIES: RPM 5 CARBON
TYPE: Turntable

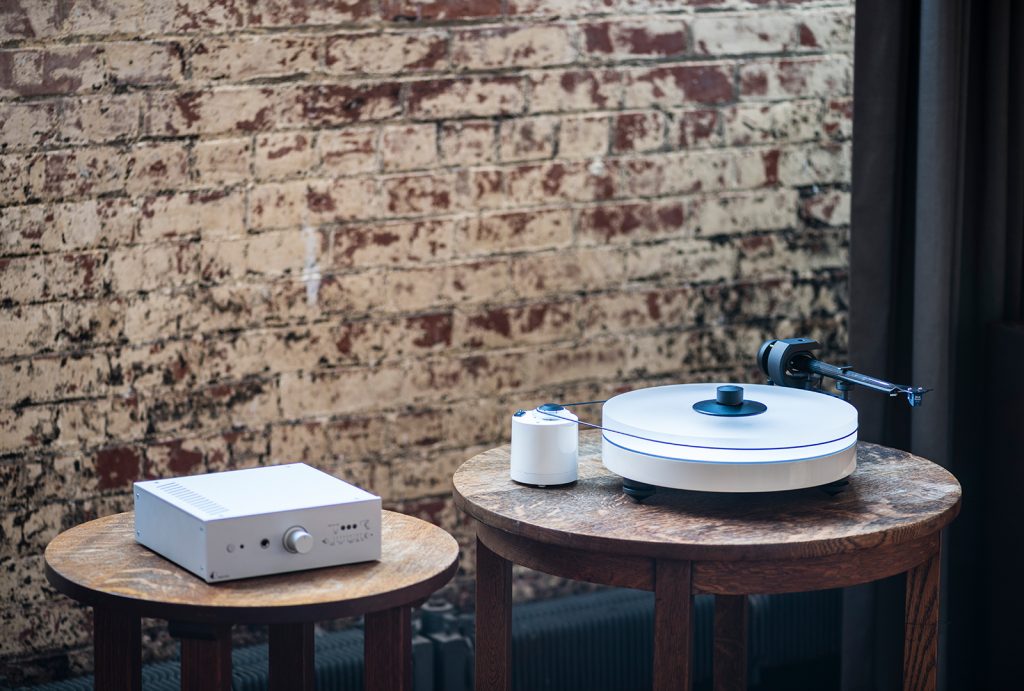

RPM 5 Carbon utilises a radical concept with a lot of innovations, that originate from its big brother RPM 9

Carbon: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. The acoustically inert platter is made from acrylic. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability.



OVERVIEW

The classy 9“ cc Evo tonearm, which is made from carbon fibre is suitable for any high-quality MM or MC cartridge.
A TPE-damped counterweight eliminates unwanted
resonances. All ingredients add up to a miracle in sound for the price. Its ultra-stylish look is available in 3 exclusive high-gloss finish versions.



  • Precision belt drive principle using synchronous motor
  • Ultra-precision DC-driven AC generator motor power
  • Inverted platter bearing with ceramic ball
  • Acoustical inert acrylic platter
  • 9” cc EVO tonearm made from carbon
  • Counterweight with TPE damping
  • Adjustable aluminium tip-toe feet
  • Available with or without Ortofon Quintet red cartridge
  •  3 high-gloss colours (black, red, white)
  • Lid available as an option
Share on facebook

Share

TECHNICAL SPECIFICATIONS

Speed
33, 45 (manual speed change)

Drive principle
belt drive

Platter
300mm MDF

Mains bearing
stainless steel axle with ceramic ball

Wow & flutter
33: +/- 0,12% I 45: +/- 0,10%

Speed drift
33: +/- 0,17% I 45: +/- 0,08%

Signal to noise
73dB

Tonearm
9” cc EVO Carbon

Effective arm length
230mm

Effective arm mass
8 g

Overhang
18mm

Tracking force
0 – 25mN

Included accessories
15 volts DC / 800 mA power supply

Power connection
110/240 Volt – 50 or 60 Hz

Power consumption
5 watt max / < 0,3 watt standby

Dimensions
430 x 150 x 323mm (WxHxD)

Weight
8,0 kg net
