BRAND: ProJect Audio

SERIES: The Beatles 1964 Recordplayer
TYPE: Turntable

This special collaboration between Pro-Ject Audio Systems and the Universal Music Group features one of the most influencing artists of all time The Beatles!

The turntable used is one of the most sold audiophile turntables in the world: Debut Carbon Esprit SB!It features high quality and audiophile components, such as an Ortofon 2M Red cartridge, a precision aluminium pulley, an electronic speed control, top notch MDF chassis, an acrylic platter or a completely redesigned motor control.



OVERVIEW

Its sound is both thrilling and relaxing, musical and detailed just like the music from The Beatles,therefore they are perfect partners in crime.

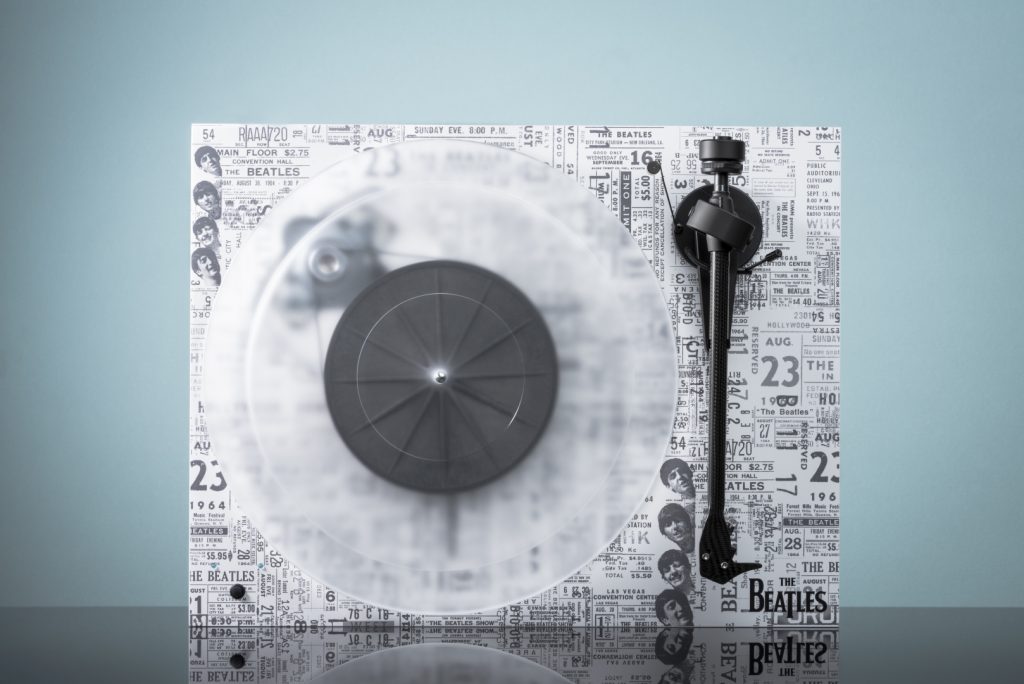

The artwork shows copies of tickets from their legendary worldtour in 1964.

  • Special edition of Debut Carbon Esprit SB
  • Limited to 2.500 pieces worldwide
  • Non-resonant acrylic platter
  • Belt drive with synchronous motor and silicone belt
  • 33/45 & 78*rpm out of the box (* please use78 stylus)
  • Built-in precision Speed Box with switch on upper side
  • Chassis made of resonance in-sensitive MDF
  • Integrated DC-powered motor control minimizes
  • motor vibration and guarantees speed stability
  • Low tolerance platter bearing & stainless steel spindle
  • 8,6” carbon tonearm
  • Ortofon 2M red cartridge pre-mounted
  • High-quality semi-balanced Connect it E phono
  • interconnect with gold plated connections
  • Special decoupling feet
  • Dust cover included
Share on facebook

Share

TECHNICAL SPECIFICATIONS

Speed
33, 45 / 78 (electronic/manual speed change)

Drive principle
belt drive

Wow and flutter
33: +/-0,19%; 45: +/-0,17%

Speed drift
33: +/-0,60%; 45:+/-0,70%

Platter
300mm acrylic platter

Main platter bearing spindle
stainless steel

Tonearm
8,6” Carbon









Effective arm length
218,5 mm

Overhang
18,5mm

Effective tonearm mass
6,0 g

Tracking force
10 – 30mN

Included accessory
15 volts DC / 1,6A power supply, dust cover

Power consumption
7,4 watt max / < 0,5 watt standby

Power connection
110/120 or 230/240 Volt – 50 or 60 Hz

Dimensions
415 x 118 x 320mm (WxHxD) lid closed

Weight
4,9 kg net
