BRAND: ProJect Audio

SERIES: Xtension 10 Evolution
TYPE: Turntable

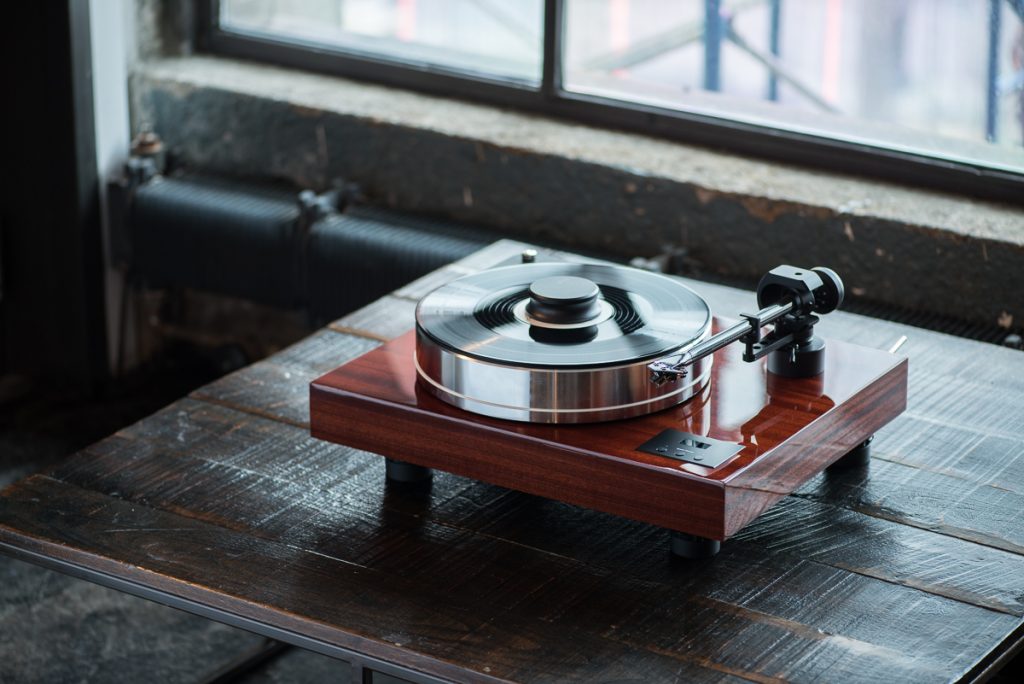

Xtension 10 Evolution is ideal for all, who look for sound quality of standard Xtension in a more compact size below 48cm width, to fit standard audio racks. It incorporates all of our 20 years experience in turntable design. Xtension 10 chassis is made from MDF filled with metal sand, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 22kg total turntable mass. The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles.

OVERVIEW

Instead of the old standard adoption of pure metal used for the main platter, we’ve found a perfect alloy which we damped on the inner side with Sorbothane®.

Additionally we’ve glued recycled Vinyl records to the top (which act as a perfect mat) and bake this’sandwich’ before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultrasilently on an inverted ceramic ball bearing with magnetic suspension. The Pro-Ject 10cc Evolution with its tonearm base also benefits from ‘high-mass’ technologies, and is isolated from the main board by a sheet of Sorbothane®.

To use this tonearm with a wide range of top quality phono cartridges, from 4 to 14g. it comes with a set of 4 different Sorbothane®- damped counterweights. Xtension 10 Evolution comes with a beautiful dustcover with adjustable hinges, as well as in five high gloss finishes: mahogany, olive, black piano, white and red.

  • Super-heavy 22 kg belt drive turntable
  • Mass loaded magnetic floating subchassis
  • Precision balanced sandwich-platter
  • Inverted ceramic ball bearing with magnetic support
  • Heavy weight record clamp
  • Extremely low level of natural resonance
  • Perfect decoupling through magnetic feet
  • Electronic speed control 33/45/78 Upm
  • Tonearm 10cc Evolution made from carbon fibre
  • Inverted tonearm bearings (ABEC 7 quality)
  • Phono cable included: 5pin > RCA or 5pin > XLR



Share on facebook

Share

TECHNICAL SPECIFICATIONS

Speed
33 / 45 / 78 Upm (Speed Box DS built-in)

Acrylic dust cover
yes

Pro-Ject tonearm cable included
Connect it 5P-C > RCA Alternatively with no upcharge: 5P > XLR

Aluminium feet
Magnetic supported & Sorbothane damped

Turntable main bearing damping
heavy weight metal block

Max. speed variance
±0,08%

Max. wow and flutter
±0,01% Max.

Rumble
-73dB





Platter weight/diameter
5,7kg/300mm

Effective arm length / overhang
254mm / 16mm

Effective tonearm mass
8,5g

Tracking force range
10-30mN

Cartridge weight range
from 4 – 14g (4 different counterweights included)

External power supply (prim/sec)
220 – 240V/50Hz / 15V/1.000mA DC

Power consumption
2W

Dimensions lid closed (lid open)
480 x 235 (495) x 400 (535)mm WxHxD

Weight
22kg
