BRAND: ORTOFON

SERIES: INT-250
TYPE:
Cartridge

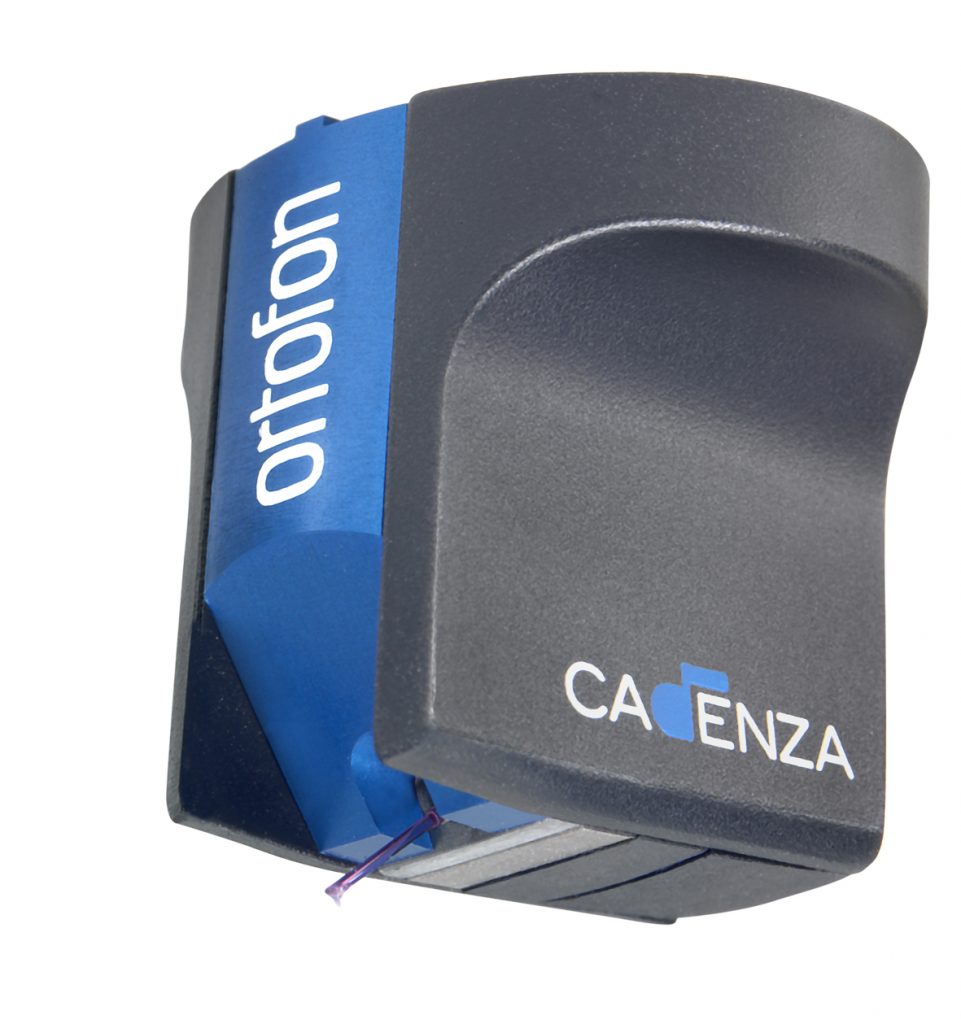

At Ortofon we constantly look for new technology to be used in our products and push the performance of existing technology. Thus we assure the highest level of performance and quality. The Kontrapunkt models and MC Jubilee became market standards and are among our most popular cartridges. Nevertheless Ortofon decided to develop a new cartridge series that is even more ambitious.

By carefully implementing cobalt-iron pole pieces, new improved winding process on the armature, using extruded aluminium housing in the models as well as other changes, we have been able to reveal new possibilities in performing the analogue information. It was also decided to make a more complete range of cartridges, which meant an introduction of a moving coil Cadenza Mono model to support our customers, who have an extended interest in micro groove mono records. We believe that our faithful and new customers will enjoy the playback of their precious analogue records even more now.

OVERVIEW

Cadenza (from Italian: meaning cadence) refers to a portion of a concerto in which the orchestra stops playing, leaving the soloist to play alone in free time, without a strict, regular pulse. A cadenza can be written or improvised. It’s usually the most elaborate and virtuosic part that the solo instrument plays during the whole piece. At the end of the cadenza, the orchestra re-enters, and generally finishes off the movement.

During the 19th century, composers began to write cadenzas out in full. Others wrote cadenzas for works, where the composer had intended for the solo to be improvised, in order for the soloist to have a well formed solo that they could practice in advance. Some of these have become so widely played and sung that they are effectively a part of the standard repertoire.

Share on facebook

Share

TECHNICAL SPECIFICATIONS

Output voltage
at 1 kHz 5 cm/sec 140 μV

Channel balance
< 1,5 dB

Channel separation at 1 kHz
23 dB

Channel separation at 15 kHz
15 dB

Frequency range at -3 dB
15 dB

Frequency range at -3 dB
20 Hz – 50 kHz

Frequency response
20 Hz – 20 kHz
+3/-1

Tracking ability at 315 Hz at
70 μm

Compliance, dynamic, lateral
12 μm/mN

Compliance, dynamic, lateral
12 μm/mN

Stylus type
Nude fine line



Stylus tip radius
r/R 8/40

Tracking force range
2,2-2,7 g (22-27 mN)

Tracking force recommended
2,5 g (25 mN)

Tracking angle
20º

Internal impedance, DC resistance
5 Ohm

Recommended load impedance
50-500 Ohm

Cartridge body material
Stainless steel Aluminium

Cartridge colour
Natural/Black

Cartridge weight
10,7 g
