BRAND: McIntosh

SERIES: MTI100
TYPE: Turntable

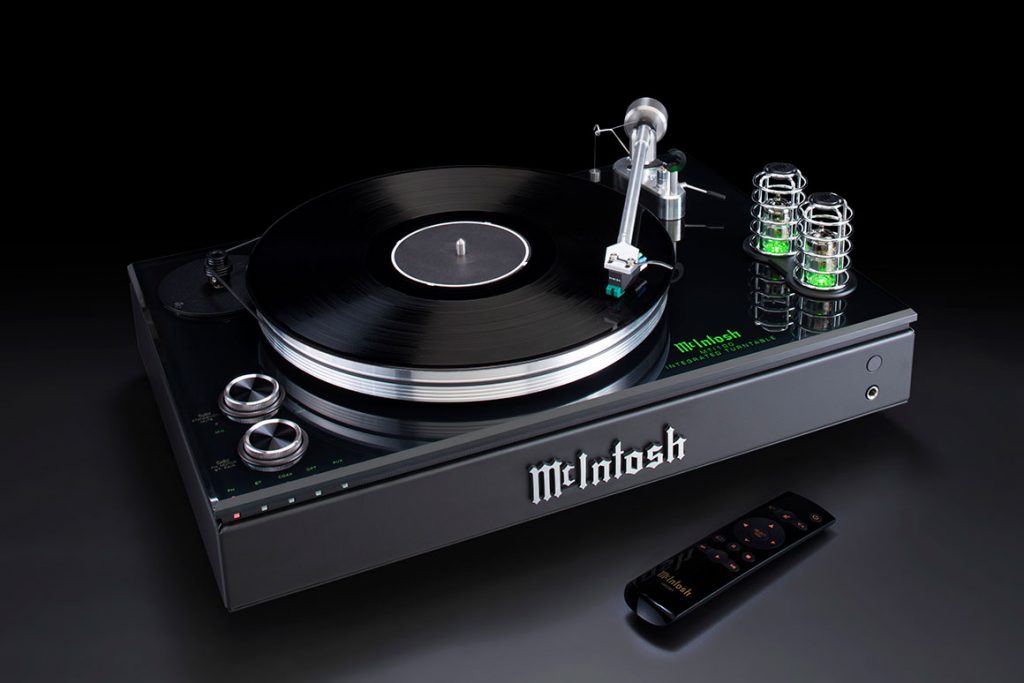

Integrated Turntable

  • A modern home audio system for modern lifestyles
  • Turntable, preamplifier and amplifier all in one
  • Includes Bluetooth® and auxiliary inputs
  • Just add your music and speakers

OVERVIEW

At first glance, the McIntosh MTI100 Integrated Turntable may look like it’s just a turntable, but a closer look will reveal that it is in fact so much more. Truly a one-of-a-kind product, it is designed for those who want maximum flexibility in their home audio system but don’t want – or don’t have the space for – a large audio system in their home. With all the built-in connectivity the MTI100 offers, it can become the center piece of a modern home audio system for modern lifestyles. Simply add your favorite speakers of choice and you’ll have a complete and comprehensive audio system.

  • The MTI100 Integrated Turntable is so much more than just a turntable. A one-of-a-kind product, the MTI100 is designed for those who want maximum flexibility in their home audio system but don’t want – or don’t have the space for – a large audio system in their home.
  • Besides playing 33-1/3 and 45 rpm records, it also includes a power amplifier, a vacuum tube preamplifier, a phono preamplifier, analog and digital inputs, a Bluetooth® receiver, a subwoofer output, stereo speaker outputs, and a headphone jack.
  • The dedicated phono preamplifier is housed in a custom shielding box that prevents interference or noise from seeping into the vinyl signal.
  • Comes with a Sumiko Olympia Moving Magnet cartridge, whose upgraded stylus and cantilever assembly allow for more dynamic punch and improved frequency response.
  • Class D amplifier is rated for 80 Watts per channel into 4 Ohms or 50 Watts per channel into 8 Ohms.
  • Marries vintage vinyl records with modern music streaming via a High Definition Bluetooth input that ensures you receive the best sound quality possible from your Bluetooth device.

Share

TECHNICAL SPECIFICATIONS

Power Output:
50 Watts per channel into 8 Ohm speakers or 80 Watts per channel into 4 Ohm speakers.

Total Harmonic Distortion:
0.5% maximum from 20Hz to 20kHz (Amplifier)
0.2% maximum from 20Hz to 20kHz (Preamplifier)

Signal to Noise Ratio:
93dB (Amplifier)
90dB (High Level)
75dB (Phono)

Dynamic Headroom:
1.0dB (8 Ohms)
1.3dB (4 Ohms)

Damping Factor:
Greater than 200 (8 Ohms)
Greater than 100 (4 Ohms)

Frequency Response:
+0, -0.7dB from 20Hz to 20kHz

Inputs & Outputs:
1 Unbalanced input
1 Unbalanced output (bridged to AMP IN)
1 Coax input
1 Optical input
1 Sub output

Tonearm:
Damped machined aluminum tube arm with lateral type bearing

Overall Dimensions (W x H x D):
19-1/4” (48.9cm) x 6-3/4” (17.15cm) x 14” (35.6cm)

Weight:
33.5 lbs (15.2kg) net, 40.5 lbs (18.4kg) in shipping carton
